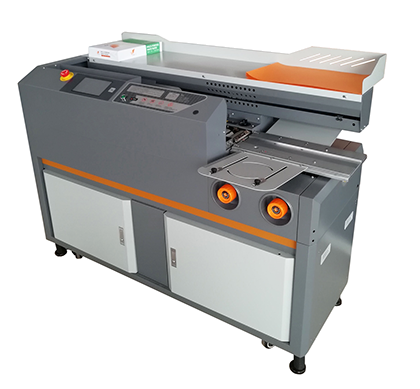

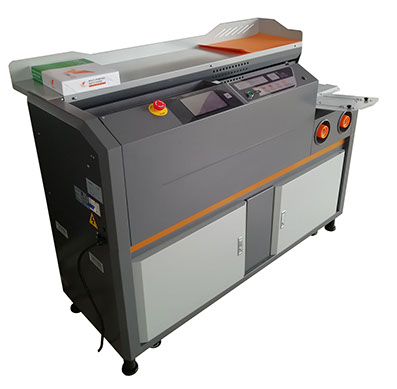

EASYBINDER 85

PLANAMELT-PUR / EVA COMPATIBLE*

a new level of  binding capability for digital binderies

All the features you would find in a machine of twice the size and 4 times the cost in an ultra compact package.

KEY FEATURES :

  • Will bind nearly every kind of digitally printed paper
  • Can use the modern Pur-Eva glues like" Planamelt"
  • Book block tray with 2 height settings using a spacer plate for different milling depths
  • Self centring auto clamping of the block to 50 mm
  • Gluing/ binding spine length from 10 cm to 44 cm

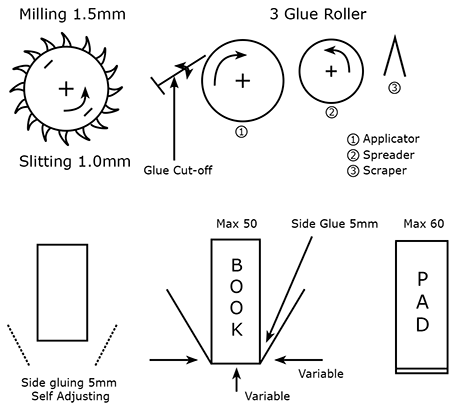

  • Real milling  of 1,5 mm and additional riving  knives
  • Integrated high power chip extractor with chip collection bag
  • Dust brush for after the milling to remove hanging on fibre
  • 2 glue pot system with variable temp to 180 deg
  • First pot is for side gluing with driven angled wheels with fast setting glue to let the cover set tight on the book
  • Second pot is with a slower setting glue to penetrate and set into the exposed fiber and grip solidly
  • 2 glue rollers
  • Nr 1 applicator  roller with glue wave
  • Nr 2 reverse spreader / scraper
  • Adjustable tank height
  • Automatic setting centred book cover press for  skew free even pressure on both sides
  • Adjustable side and dorsal pressure
  • Adjustable clamping and book holding time
  • Function for gluing blocks without using the  cover press
  • Smallest floor space requirement of any automatic binder
  • Full  mechanical cycle  in about 4 seconds ( plus loading/ unloading  time)
  • Fully warranted and full parts stock in the EU

Dimensions:

Width : 220mm

Depth : 800mm

Height : 1600mm

Weight : 220kg

#DM0760  EASYBINDER 85



Click here to download the PDF sheet of this product.
