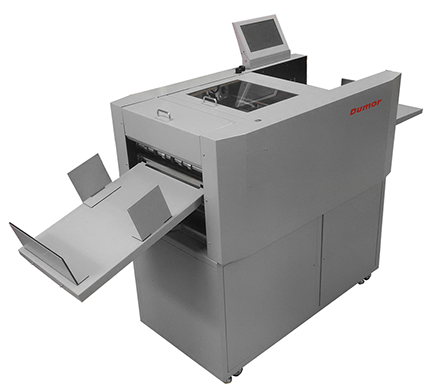

AEROCARD-STRIKE

THE NEW AEROCARD-STRIKE WILL DO MORE APPLICATIONS AND MORE POWERFUL & COMPACT THAN ANY OTHER DOCUMENT CUTTER

APPLICATIONS:

- Greeting & Business cards, Compliment slips, Leaflets & Brochures

- Publicity with tear off strips, Publicity with tear off tickets

- Vouchers / raffle tickets, Book covers - unbleed and full bleed

- Labels min 30 x 50mm, Price tags

- Banners, Zigzag documents, Menus

...and scores more applications

SPECIFICATIONS

Hardware:

  • Pile depth 105mm top suction belt feeding with infeed skew adjustment ± 3 deg
  • Infeed 210 to 210mm to 320 to 650mm standard (Optional long format kit 900mm)
  • Thickness 0,1 to 0,4mm caliper ca 100 to 400gsm depending on coating and calendering
  • Bar code reader option with automatic set up in ca 3 sec
  • X/Y drift sensor with auto sheet by sheet on-the-fly correction
  • Optional double ultrasonic sheet detector
  • 6 independent slit heads enabling full range of card sizes with no blacked out sizes
    (not 4 like on other machines)
  • Min slit 3mm
  • Cross cut self sharpening blade rated at 6 million cycles min cut 3mm
  • Slide in slide out cross creasing bar/optional perfing bar 24 (optional 48 tpi) min step 0,5mm

Additional:

  • Additional linear tools ( options ) from 1 to 8
  • Edge perf( max 1 )
  • Normal perf 12tpi
  • Scoring @ 1,3 mm
  • Slitting
  • Kiss cutting for stickers

Optional Strike perfing:

  • 1 to 4 channel programmable ON/OFF strike perf with 5mm min step
  • Outfeed tray
  • Optional Business cards reception tray

Software:

  • 8” TFT full colour screen
  • Immediate start up no boot up time needed (Other use a PC that require a few minutes
    to boot up !)
  • No need for separate computer and long boot up time
  • 80 + factory preset jobs grouped by application type
  • 50 free nameable memories
  • Easy-set custom job programming in just a few steps
  • X/Y drift correction
  • Bar code application
  • Image shrink compensation in x/ y direction
  • Image stretch compensation in x/ y direction
  • On screen real time full colour line by line  job visualisation

Technical menu:

Self check diagnostic software

Recommended service interval software with user alert

KEY FEATURES

Sheet flow process:

Infeed and set up:

  • Infeed sheets from 105mm high pile from 210x210mm to 330x650mm
  • Caliper 0,1mm to 0,4mm card (less for laminated stock)
  • Bar code reader (option) with 3sec auto setting of all parameters with job preset counter
  • X/Y mark reader for image drift correction of up to 3mm (others read only X axis)

Then:

  • Slit up to 5 rows or 3 rows with full bleed
  • Cross cut up to 32 times per sheet (min cut step 3mm)
  • Crease up to 16 times per sheet (length dependent) or cross perf to 16x

Optional:

  • Further Slitting / Perfing / Kiss cutting / Scoring up to 8 tools can be fitted
  • Optional fitment of up to 4 strike perf heads for ON/OFF perfing
  • Cross perfing tool 24/48tpi



Standard reception tray with 4 separators

Options: Small card reception tray and Extra long tray

Strike perf heads

Here you can download
multiple preset templates
A4 - SRA4 - A3 - SRA3

Download

#DM2012  AEROCARD-STRIKE



OPTIONS

Business card tray

SP Head

Barcode reader

Long tray

Conveyor

Spare Platen

Perf Bar

Linear tool
